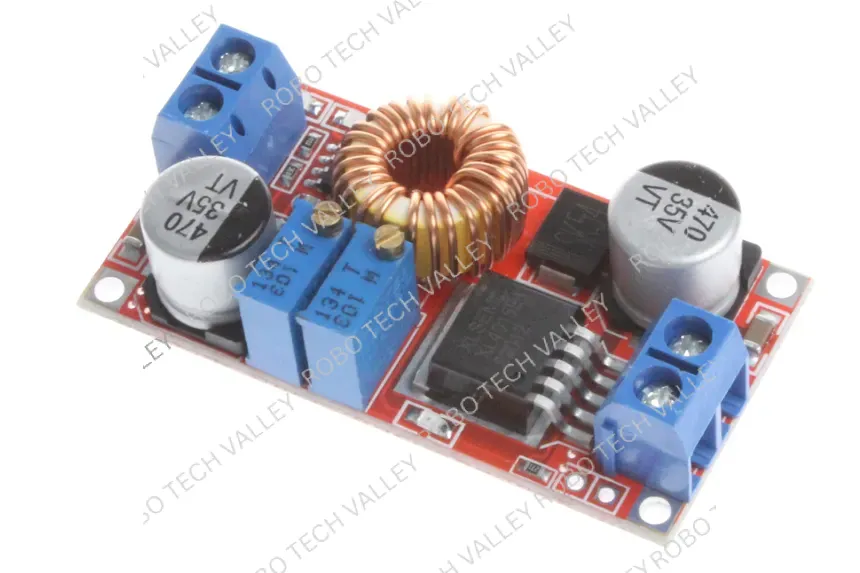

HOTXL4015 Module Adjustable DC-DC 5A Step Down CC/CV Buck Converter

XL4015 Module Adjustable DC-DC 5A Step Down CC/CV Buck Converter

(0 reviews)✓ In Stock
৳240৳240-0%

XL4015 5A DC-DC Adjustable Buck Converter The XL4015 is a powerful step-down module designed for high-current applications. It functions as a non-isolated constant current (CC) and constant voltage (CV) regulator, making it an excellent choice for battery charging and driving high-power LEDs. Key Features Dual Control Modes: Capable of regulating both Constant Current and Constant Voltage, providing flexibility for precision charging and power supply tasks. High-Efficiency Conversion: Achieves up to 95% efficiency using non-synchronous rectification and a 300KHz switching frequency. Robust Output: Delivers a maximum of 5A, though adding a heatsink is highly recommended when operating continuously at this peak level. Stable Power Delivery: Engineered with tight regulation (±0.5% load) and low output ripple (50mV) to protect sensitive downstream components. Compact Integration: Its 51mm x 26.3mm footprint allows it to fit easily into custom enclosures and industrial control boxes. Technical Specifications Component Specification Input Voltage 5V – 32V Output Voltage 0.8V – 30V (Adjustable) Output Current 5A Max (Heatsink required for 5A) Switching Frequency 300KHz Voltage Regulation ±2.5% Operating Temp -40°C to +85°C Product Summary Flexible Power: Converts inputs of 5V–32V to a highly stable 0.8V–30V adjustable output. High Current Support: Manages up to 5A of output current, ideal for high-power LED drivers and battery chargers. Precision Tuning: Features onboard potentiometers for independent voltage and current limit adjustments. Efficient Performance: Delivers up to 95% efficiency with a fast 300KHz switching frequency for minimal energy loss. Reliable Design: Maintains low ripple and tight regulation across a wide temperature range of -40°C to +85°C.

Quantity:
1
700000 available
Buy Now

XL4015 5A DC-DC Adjustable Buck Converter The XL4015 is a powerful step-down module designed for high-current applications. It functions as a non-isolated constant current (CC) and constant voltage (CV) regulator, making it an excellent choice for battery charging and driving high-power LEDs. Key Features Dual Control Modes: Capable of regulating both Constant Current and Constant Voltage, providing flexibility for precision charging and power supply tasks. High-Efficiency Conversion: Achieves up to 95% efficiency using non-synchronous rectification and a 300KHz switching frequency. Robust Output: Delivers a maximum of 5A, though adding a heatsink is highly recommended when operating continuously at this peak level. Stable Power Delivery: Engineered with tight regulation (±0.5% load) and low output ripple (50mV) to protect sensitive downstream components. Compact Integration: Its 51mm x 26.3mm footprint allows it to fit easily into custom enclosures and industrial control boxes. Technical Specifications Component Specification Input Voltage 5V – 32V Output Voltage 0.8V – 30V (Adjustable) Output Current 5A Max (Heatsink required for 5A) Switching Frequency 300KHz Voltage Regulation ±2.5% Operating Temp -40°C to +85°C Product Summary Flexible Power: Converts inputs of 5V–32V to a highly stable 0.8V–30V adjustable output. High Current Support: Manages up to 5A of output current, ideal for high-power LED drivers and battery chargers. Precision Tuning: Features onboard potentiometers for independent voltage and current limit adjustments. Efficient Performance: Delivers up to 95% efficiency with a fast 300KHz switching frequency for minimal energy loss. Reliable Design: Maintains low ripple and tight regulation across a wide temperature range of -40°C to +85°C.
