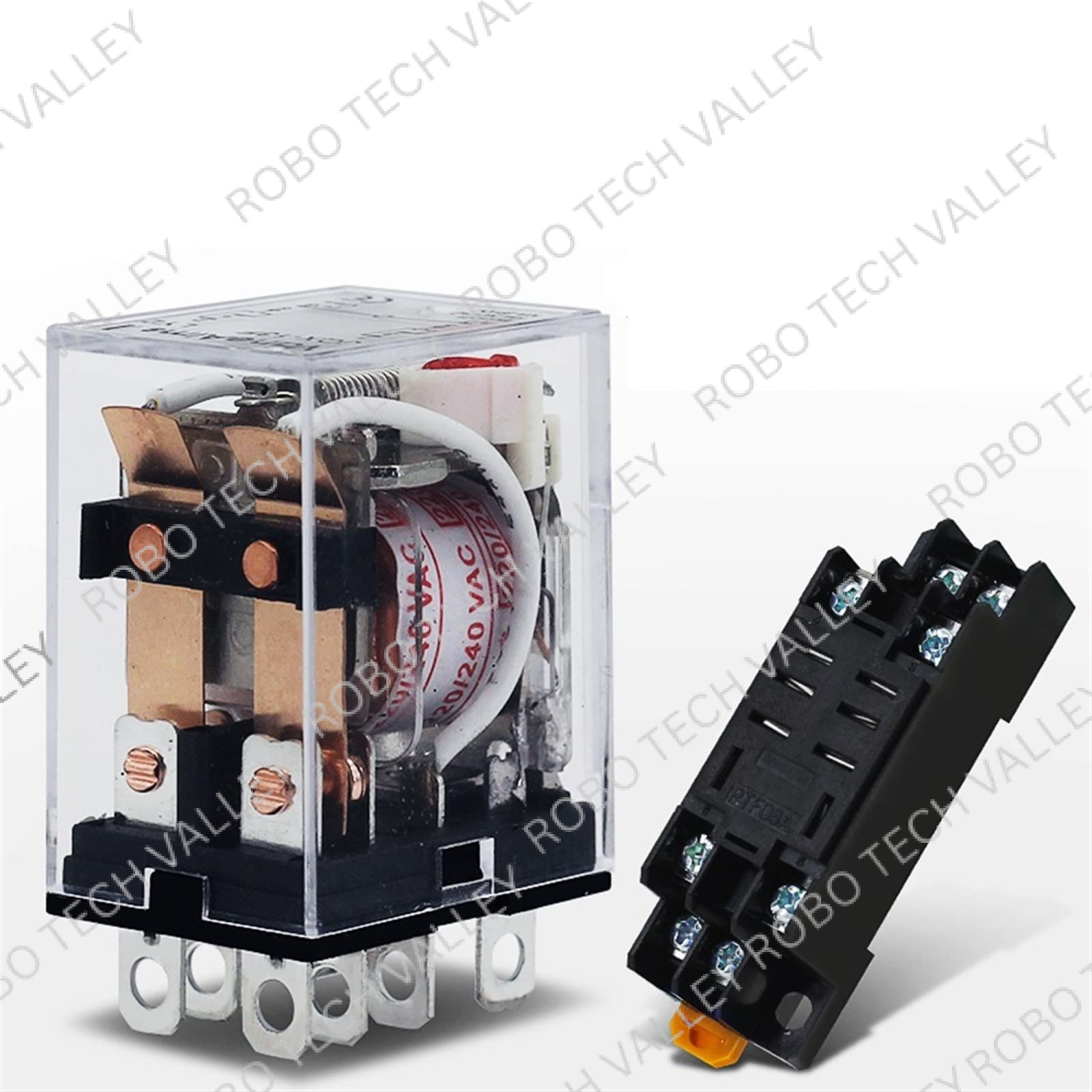

Relay 8pin 220VAC 10A with Base
Product Overview: 8-Pin Electromagnetic Power Relay (220VAC / 10A) The 8-pin Power Relay (commonly known by models like MK2P-I or LY2NJ) is a robust industrial-grade switch designed for heavy-duty applications. It uses an electromagnetic coil to control high-voltage circuits safely. Featuring a DPDT (Double Pole Double Throw) configuration, it can control two independent circuits simultaneously, making it a staple for ATS (Automatic Transfer Switch) panels, motor control, and household automation. Technical Specifications Feature Specification Coil Voltage 220V AC (50/60Hz) Contact Capacity 10A @ 250VAC / 30VDC (Resistive) Contact Configuration DPDT (2 Form C: 2NO + 2NC) Max Switching Power 2500 VA / 300 W Mechanical Life ≥ 10,000,000 Operations Electrical Life ≥ 100,000 Operations Dielectric Strength 2000 VAC (1 min between contacts) Insulation Resistance 500 MΩ @ 500 VDC Operating Temp. -40°C to +55°C Pin Configuration (Standard MK2P-I) An 8-pin relay is generally wired as follows: Coil (Pins 2 & 7): Connect your 220V AC supply here to trigger the relay. Common (Pins 1 & 8): The "input" points for the circuits you are switching. Normally Closed (Pins 4 & 5): Connected to Common when the relay is OFF. Normally Open (Pins 3 & 6): Connected to Common when the relay is ON. Key Features Heavy Duty Switching: Capable of handling up to 10A, suitable for pumps, heaters, and industrial machinery. Transparent Housing: Allows for easy visual inspection of the contact status and mechanical health. Plug-in Design: Designed for use with standard octal (round) or blade-type socket bases for easy rail mounting and replacement. Dual Circuit Control: The DPDT setup allows you to switch the "Live" and "Neutral" lines simultaneously or control two completely different devices with one trigger.
