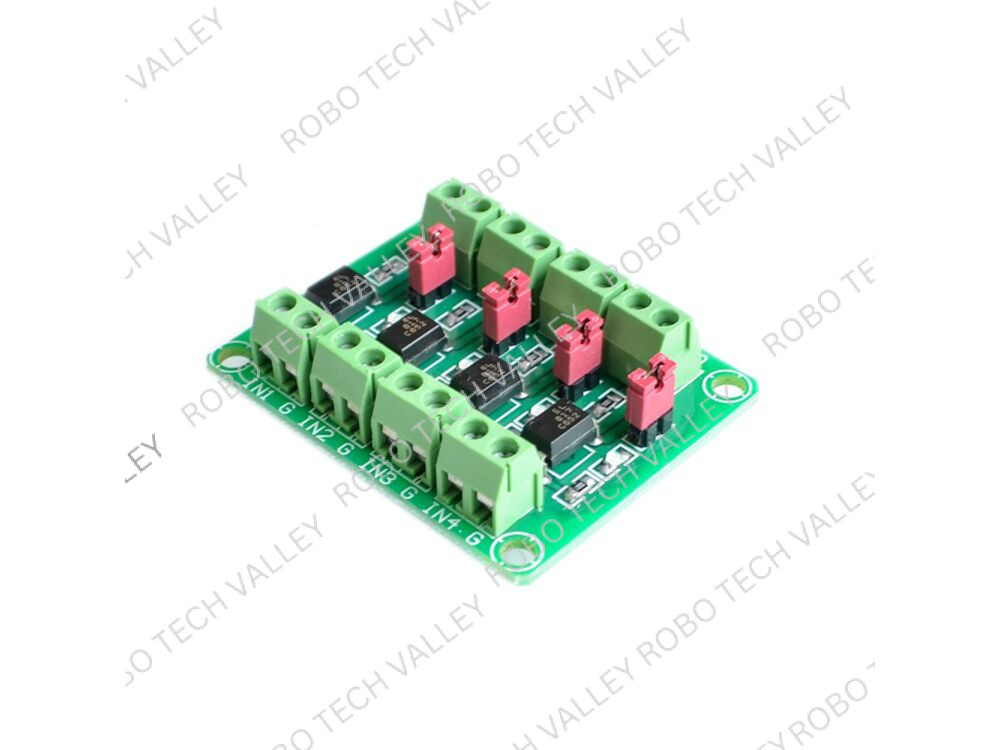

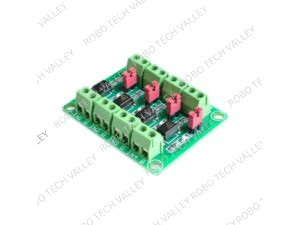

SALEPC817 4 Channel Optocoupler Isolation Board

PC817 4 Channel Optocoupler Isolation Board

(0 reviews)✓ In Stock
৳300৳300-0%

Product Overview: Multi-Channel Isolator Board This module provides a safe bridge between low-power microcontrollers and high-power industrial components. By converting electrical signals into light and back again, it ensures that there is no physical electrical connection between your MCU and the load, effectively acting as a "firewall" for your circuit. Key Technical Specifications Feature Specification I/O Isolation High-speed Optocoupler protection for MCUs Signal Filtering Advanced Noise Suppression for switching circuits Input Driving Voltage Supports wide range: 3.6V to 24V Output Port Voltage Flexible switching range: 3.6V to 30V Logic Configuration Jumper-selectable Pull-Up or Pull-Down output Core Features Total Electrical Isolation: Protects sensitive pins on your Arduino or ESP32 from "back-EMF" and high-voltage surges. Dual-Logic Flexibility: The onboard jumpers allow you to switch the output between High Level (Pull-up) or Low Level (Pull-down), making it compatible with both NPN and PNP logic styles. High-Speed Switching: Optimized for suppressing electromagnetic interference (EMI) in noisy environments like motor control or relay driving. Independent Channels: Each channel is isolated from the others, allowing you to control different voltage levels (e.g., 12V and 24V) on the same board

Quantity:
1
700000 available
Buy Now

Product Overview: Multi-Channel Isolator Board This module provides a safe bridge between low-power microcontrollers and high-power industrial components. By converting electrical signals into light and back again, it ensures that there is no physical electrical connection between your MCU and the load, effectively acting as a "firewall" for your circuit. Key Technical Specifications Feature Specification I/O Isolation High-speed Optocoupler protection for MCUs Signal Filtering Advanced Noise Suppression for switching circuits Input Driving Voltage Supports wide range: 3.6V to 24V Output Port Voltage Flexible switching range: 3.6V to 30V Logic Configuration Jumper-selectable Pull-Up or Pull-Down output Core Features Total Electrical Isolation: Protects sensitive pins on your Arduino or ESP32 from "back-EMF" and high-voltage surges. Dual-Logic Flexibility: The onboard jumpers allow you to switch the output between High Level (Pull-up) or Low Level (Pull-down), making it compatible with both NPN and PNP logic styles. High-Speed Switching: Optimized for suppressing electromagnetic interference (EMI) in noisy environments like motor control or relay driving. Independent Channels: Each channel is isolated from the others, allowing you to control different voltage levels (e.g., 12V and 24V) on the same board
