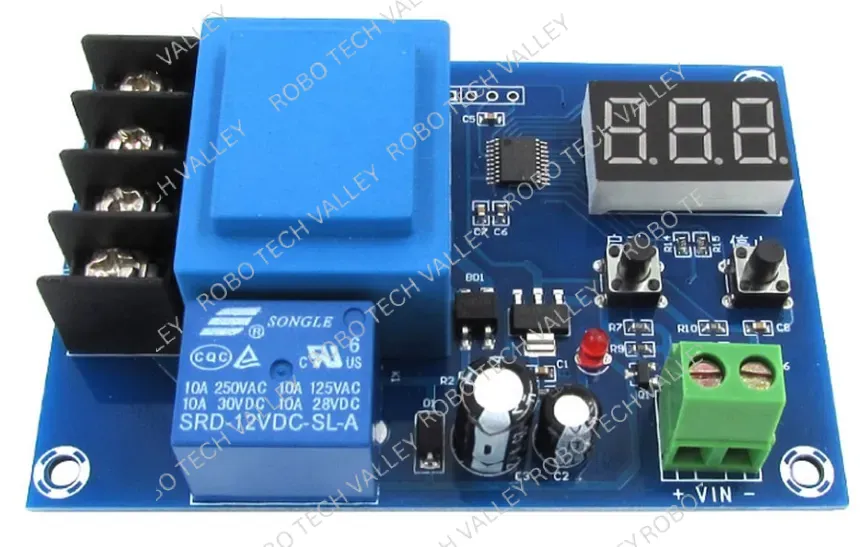

HCW-M633 (XH-M633) High-Current Battery Charging Control Module

The HCW-M633 is a heavy-duty, programmable voltage controller designed to automate the charging process for a wide range of battery types. By acting as a smart switch between your power source and the battery, it prevents overcharging and manages discharge cycles with high precision.

Core Functionality

• Universal Battery Compatibility: Supports virtually all battery chemistries including Lithium-ion, Lead-acid (Car/UPS), Ni-Cd, Ni-MH, and Polymer batteries from 6V to 60V.
• Smart Charging Cycle: Allows you to set a Start Voltage (to begin charging) and a Stop Voltage (to cut power), ensuring the battery stays within its optimal health range.
• High-Current Relay: Equipped to handle charging currents up to 30A, making it suitable for larger battery banks and electric vehicle applications.
• Precision Monitoring: Features a bright digital display with 0.1V accuracy, providing real-time feedback on the current battery state.

Technical Specifications

Key Features

• Dual Operation Modes: Functions as both an automated charger controller and a simple battery voltage protector.
• Robust Switching: Designed for heavy-duty use in solar power systems, DIY charging stations, and industrial battery management.
• Memory Function: Settings are saved internally, so the module remembers your voltage limits even after power is disconnected.
• Simple Interface: Two-button setup allows for quick calibration of the high and low voltage thresholds.

Usage Notes

• Relay Power: Please note that the onboard relay and display are powered by the battery being charged. The module will not turn on if a battery is not connected to the output.
• Power Source: The input voltage from your charger or solar panel must be higher than the target full-charge voltage of the battery.
