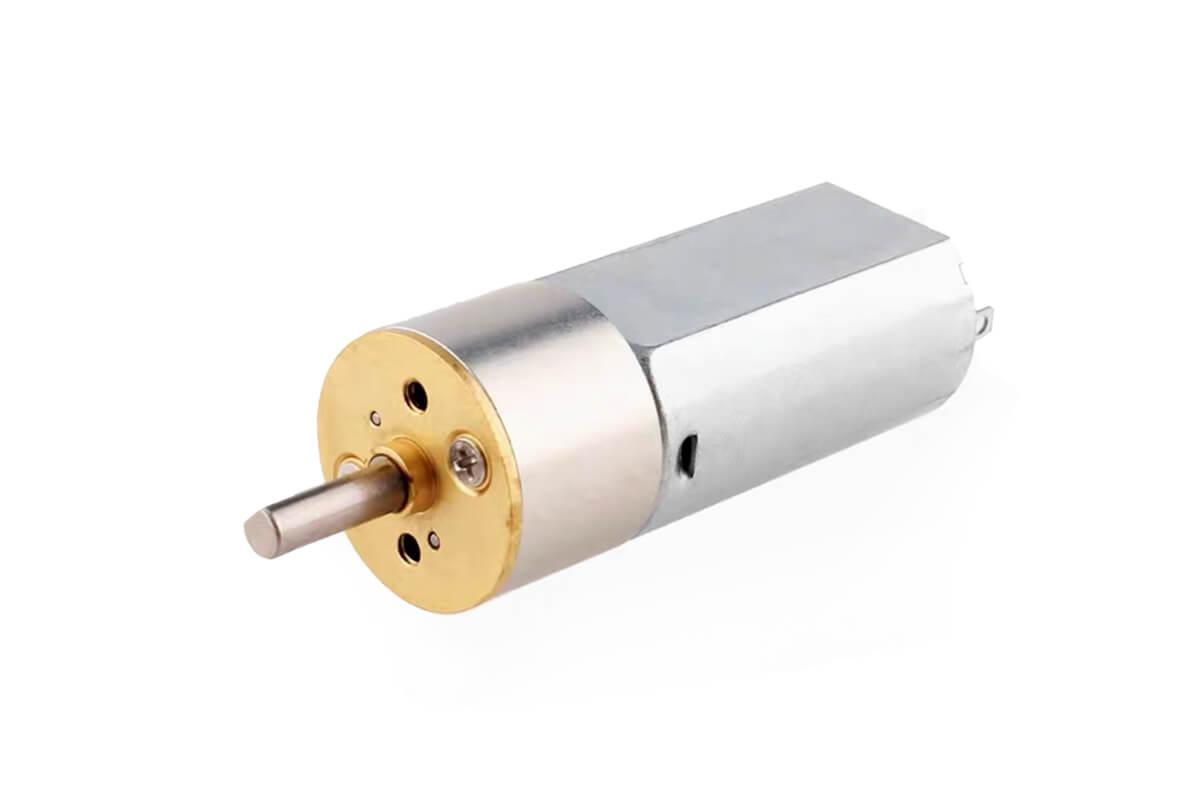

Product Introduction – DC 12V 800RPM Geared Motor 16GA-050 with 3mm Shaft – High Torque Mini Electric Motor for Robotics and DIY Projects
The DC 12V 800RPM Geared Motor 16GA-050 is a compact, powerful, and reliable mini electric motor engineered for high-torque applications. Whether you’re building a smart robot, a custom automation system, or a hobby electronics project, this geared motor delivers precision and performance in a small, efficient package.
Equipped with a robust metal gearbox, this motor converts high-speed rotation into usable torque, making it perfect for moving mechanical loads. Its 800 RPM output at 12 volts offers an ideal balance of speed and power for many DC-driven systems. The 3mm diameter D-shaped shaft provides secure coupling with gears, wheels, and pulleys, allowing smooth integration into your build.
Ideal for students, engineers, robotics enthusiasts, and makers, the 16GA-050 motor is suitable for use in remote-controlled vehicles, robotic arms, sensor platforms, motorized models, small conveyor belts, and various mechatronic devices. With its simple two-wire connection and compact size, installation is quick and hassle-free.
Product Description – DC 12V 800RPM Geared Motor 16GA-050
The DC 12V 800RPM 16GA-050 Gear Motor is a high-performance DC motor paired with a metal planetary or spur gear reduction system to provide enhanced torque at lower RPMs. Its durable internal construction ensures consistent operation over extended periods, even under load, making it an excellent choice for real-world robotics and automation environments.
This motor operates at 12V DC and delivers approximately 800 rotations per minute (RPM) under no-load conditions. The internal gearing reduces the speed of the motor while significantly increasing torque output, making it ideal for applications that require controlled movement and lifting power.
The motor’s 16GA-050 coreless brushed DC design provides smooth rotation, reduced electrical noise, and high efficiency. Its 3mm D-type output shaft ensures secure attachment to hubs and couplers, and the sturdy metal housing protects the internal gears from dust and mechanical impact.
Whether you’re building a line-following robot, an Arduino-controlled arm, or a sensor-tracking platform, this motor offers reliable performance in a wide range of voltages and mechanical conditions.
Key Features:
✅ High Torque Output – The built-in gearbox increases torque for lifting and load-bearing tasks
✅ Standard Operating Voltage: 12V DC – Optimized for use with batteries, power adapters, and regulated power supplies
✅ Speed: 800 RPM (no-load) – Balanced speed for moderate-to-fast mechanical movement
✅ Compact Design – Small enough to fit into tight builds and robotic platforms
✅ 3mm D-shaped Shaft – Compatible with most hobbyist wheels, couplers, and gear attachments
✅ Low Noise Operation – Smooth motor rotation and minimized vibration during operation
✅ Easy to Integrate – 2-wire power connection for quick wiring and installation
✅ Sturdy Construction – All-metal gearbox and steel shaft for durability and long life
Applications:
🤖 Robotics Projects – Perfect for driving wheels, robotic arms, sensor turrets, and servo replacements
🔧 DIY Automation – Great for conveyor belts, automatic doors, and motion control systems
📦 RC Models – Use in custom RC vehicles, boats, tracked robots, and motorized toys
⚙️ Arduino & Raspberry Pi Projects – Compatible with motor drivers and control boards for prototyping
🔋 Battery-Powered Systems – Efficient power usage for mobile and off-grid designs
🚗 Automotive Applications – Miniature projects like remote locks, mirror movement, or sensor motorization
🔬 STEM Education Kits – Use in teaching environments for hands-on learning in robotics and electronics
Specifications:
| Parameter | Value |
|---|---|
| Rated Voltage | DC 12V |
| No-Load Speed | 800 RPM |
| Gearbox Type | Metal Gear (spur or planetary) |
| Motor Type | Brushed DC (16GA-050) |
| Output Shaft Diameter | 3mm (D-shape) |
| Rated Torque | ~0.8–1.2 kg·cm (varies) |
| Shaft Length | Approx. 10–15mm |
| Motor Body Length | ~30–35mm (varies by supplier) |
| Motor Diameter | ~16mm |
| Weight | Approx. 35g |
| Mounting Holes | Pre-drilled for easy mounting |
| Wire Length | ~10–15cm |
Note: Exact dimensions and torque may vary slightly depending on manufacturer. Always verify measurements before finalizing your mechanical design.
Why Buy from Robo Tech Valley?
At Robo Tech Valley, we curate components that empower makers, students, and engineers across Bangladesh to bring their ideas to life. The DC 12V 800RPM 16GA-050 Gear Motor is part of our carefully selected inventory, tested for quality and reliability to support your innovation journey.
Whether you’re building a custom robot, a school project, or a smart automation prototype, our products are designed to perform in demanding conditions. We back each purchase with expert support and friendly guidance to help you choose the right motor for your project.
🛠️ Tested and Ready to Use – Each motor is tested before dispatch
🚚 Fast Delivery – Nationwide shipping across Bangladesh
📞 Tech Support Available – Need help wiring it? Just contact us!
🎓 Educational Discounts – Ask about our offers for schools and students
✅ 100% Satisfaction Guarantee – Buy with Confidence
We stand behind the performance of the 16GA-050 Geared Motor. If it doesn’t meet your expectations, our team is ready to help with replacements, returns, or troubleshooting. With pre-shipment testing, you’ll receive a product ready to power your next invention.
Start building smarter today — add the DC 12V 800RPM Geared Motor to your cart and experience the torque, speed, and efficiency that make it a top choice for DIY and robotics applications.
