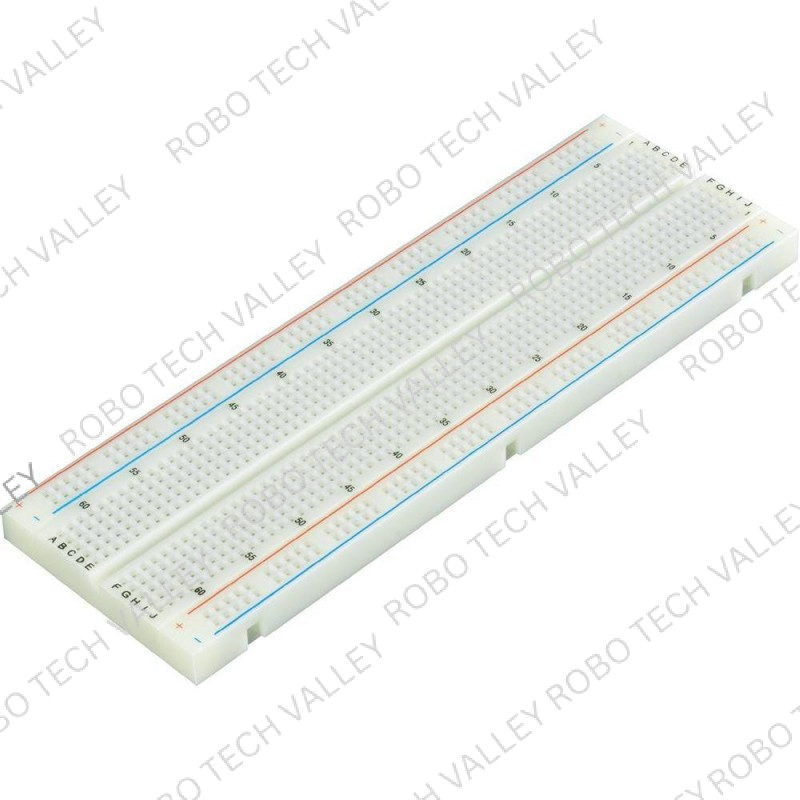

Breadboard Full Size 16×7×2
Technical Specifications Parameter Specification Total Tie Points 830 Points Terminal Strip Area 630 Points Power Rails 200 Points (4 Independent Bus Bars) Dimensions 6.5" × 2.2" × 0.3" (165 × 56 × 8.5 mm) Wire Compatibility 21–26 AWG (0.4–0.7 mm diameter) Material White ABS Plastic with Phosphor Bronze Contacts Mounting Self-adhesive backing; Interlocking capability Understanding the Connections Understanding the internal wiring is crucial for successful prototyping: Internal Structure: Beneath the plastic housing, metal strips connect specific holes. Power Rails (Horizontal): The top and bottom rows are connected horizontally. These are typically used for power (+) and ground (-) distribution. Note: Ideally, check if the rails are split in the center or continuous. Terminal Strips (Vertical): The main area holes are connected vertically in columns of five. The "Node" Concept: Node: Any set of holes electrically connected together. Making Connections: To connect "Node A" (a specific row) to "Node B" (a specific column), you bridge them using a jumper wire inserted into any hole within each respective node. Why Choose This 830-Point Board? Reliable Contact: Features phosphor bronze contacts with nickel plating, ensuring a tight grip on components and resistance to corrosion over time. Error-Free Wiring: High-contrast printed legends and coordinates allow for faster component placement and easier troubleshooting. Scalable Design: The modular sides allow you to interlock multiple breadboards, creating a massive surface area for complex robotics or CPU-building projects. Stable Mounting: Equipped with a strong adhesive backing and metal plate, making it ideal for permanent installation on robot chassis or training kits.
