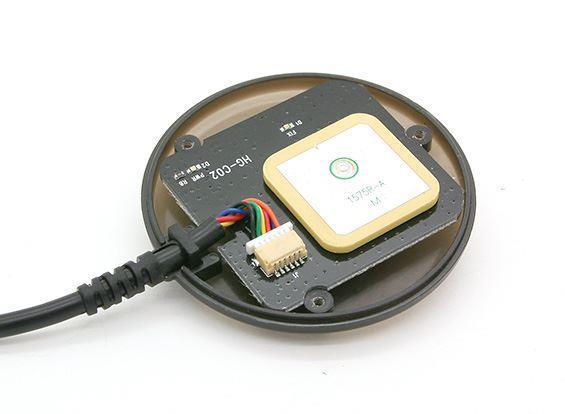

GPS Module price in bangladesh WITH COMPASS UBLOX NEO-7M keeps the module protected against the elements making it ideal for use on your aircraft or quadcopter. This GPS MODULE COMPASS UBLOX NEO-7M uses an active circuitry ceramic patch antenna to provide excellent GPS signal which outperforms the older Ublox Neo 6 series modules. This Ublox Neo 7 module also includes a rechargeable backup battery to allow for HOT starts and also includes an i2c EEPROM to store the configuration settings.  Out of the box this GPS module is configured to run at 38400 Baud and is configured to run with APM/Pixhawk systems.  This GPS module includes two cables, a 6pin connector for the GPS module and a 4 pin connector for the i2c compass. GPS module price in bd.

56 channel Ublox NEO 7M Module

GPS L1 C/A, GLONASS L1 FDMA

QZSS L1 C/A

Galileo E1B/C

SBAS: WAAS, EGNOS, MSAS

10Hz update rate

25x25x2 Ceramic patch antenna

Rechargeable 3V Backup battery

Low noise 3.3V regulator

I2C EEPROM storage

Power and fix LED’s

Pedestal Mount/Case

Pixhawk/PX4 compatible

LNA MAX2659ELT+

Pre-configured 38,400 Baud and prams for Arduplane or Arducopter

Specifications

Size: 60×11.5mm

Cable length: 20cm

Weight: 28g

Compass 4 pin/ GPS 5 pin for APM (Spare 6 pin connector included for Pixhawk/PX4)
